Lithium Battery Packaging Requirements for DDR Batteries
The transportation of damaged, defective, or recalled (DDR) lithium batteries heightens the risk associated with shipping lithium batteries. Damage to lithium batteries can lead to internal defects, and can lead to structural compromises. These damage factors can contribute to a thermal runaway battery event that can lead to leakage and short-circuiting.
To mitigate the risks involved in the transportation of lithium batteries, the rigid packaging requirements must be adhered to and must comply with the UN Model Regulations, the IATA Dangerous Goods Regulations (DGR), and the IMDG Code.
This guide provides an overview of the packaging requirements and the necessary documentation for the transportation of DDR batteries and the most common compliance issues.
1. Understanding DDR Lithium Batteries
DDR lithium batteries are considered to have an uncertain or a fully compromised safety condition. Just because damage may seem minor, doesn’t mean there isn’t a significant level of internal instability.
| DDR Category | Typical Condition | Primary Transport Risk |
| Damaged | Swelling, dents, and mechanical injuries | Short circuit, leakage, thermal delay |
| Defective | Manufacturing fault with no external damage | Internal short circuit, gas buildup, sudden failure |
| Recalled | Market withdrawal due to a safety concern | Sudden failure, latent defect |
The shipment of DDR lithium batteries is subject to more stringent packaging and containment requirements.
2. Core Lithium Battery Packaging Requirements for DDR Shipments
The packaging of DDR batteries must comply with the principles of safety that have been strengthened within the frameworks of the international regulations for the transport of dangerous goods. The requirements may differ according to the mode of transport (air, sea, or multimodal) but the following controls are applied across the board:
1.Individual Isolation and Short-Circuit Prevention
Each cell or battery must be isolated from one another by the use of non-conductive materials, such as anti-static bags or protective liners. To completely remove the possibility of external or inter-battery contact, the terminals must be covered.
2.Containment and Absorption of Leakage
The containment of leakages or suspected leakages must be done by the use of absorbent materials. The package must have an inner liner that is sealed to prevent the movement of leakage across the package.

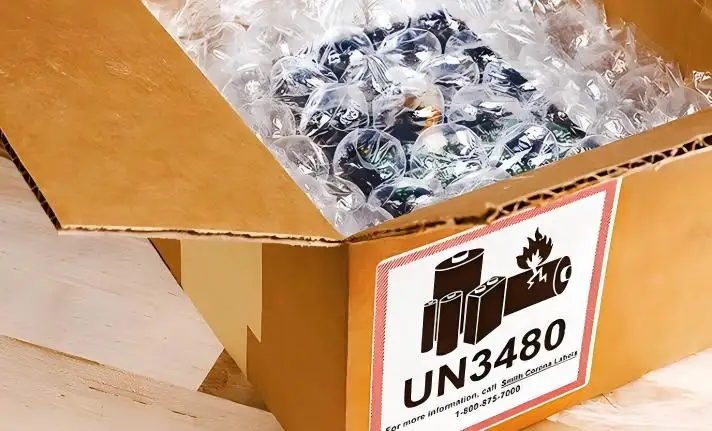

3.Outer Packaging that is UN-Compliant
The outer packaging must be able to meet the standards of UN performance packaging. (i.e., UN certified boxes) and must be able to contain the packaging for the performance of drop, stacking, and vibration tests.
4.Cushioning and Prevention of Movement
All voids in the battery packaging must be filled with cushioning materials. Batteries must be immobilized to prevent movement that may exacerbate damage or cause battery failure.
5.Thermal Risk Mitigation (Where Applicable)
For batteries that have a high risk of thermal events, carrier approval or the approval of the relevant authority may require the use of protective measures such as heat barriers and fire separation materials that are intumescent.
Adherence to these requirements for the packaging of lithium batteries will ensure that any battery failure will be contained within the packaging.
3. Documentation, Marking, and Labeling Requirements
DDR batteries require enhanced measures for the documentation and identification in order to control the battery shipment properly during the entire transport process.
| Item | Purpose |
| UN Number (e.g., UN3480 / UN3481) | Classification of Dangerous Goods |
| Class 9 Hazard Label | Labels for miscellaneous Hazardous materials |
| Lithium Battery Mark | Indicates an identification standard for lithium batteries |
| “Damaged / Defective Lithium Battery” Mark | Indicates compliance with IATA DGR DDR requirements |
| Shipper’s Declaration for Dangerous Goods | Details information pertaining to Dangerous Goods and confirms compliance to regulations |
| Special Approval / Exemption Documents | Special approvals or exemptions are required for transportation of lithium batteries and cells that do not meet the standard conditions |
Documentation and labeling must meet requirements to prevent the danger of cargo being misclassified, rejected, or delayed.
4. Regular Compliance Problems in DDR Battery Packaging
There are several repeat violations in DDR battery logistics, despite the presence of regulatory frameworks:
1.Standard Lithium Packaging for DDR Units
Using the standard lithium battery packaging for DDR products usually leads to inadequate packaging for the transport of potentially unstable or damaged cells.
2.Improper State of Charge (SoC)
To reduce the risk of thermal events, many carriers instruct to ship DDR batteries at a reduced State of Charge (SoC) of 30% or less. Failure to comply may result in the denial to ship.
3.Missing DDR Identification Markings
The absence of the necessary “Damaged/Defective” marks or transport notation will result in improper management of the package and a violation of the law.
4.Failure to Ensure Proper Carrier Coordination
DDR shipments often require the approval of the carrier due to operational constraints. The absence of a prior notice may cause the shipment to be rejected.
5. Logistics Management and Legal Requirements
Shipments of DDR lithium batteries require several services to be consolidated including testing, packaging, documentation, and approval of the carrier.
Fexbuy provides all logistics services for the shipment of lithium batteries. Fexbuy consolidates and provides:
•Testing for UN38.3
•Preparation of MSDS
•Dangerous good packaging
•Compliance of air and sea transportation regulations
•DG warehousing and FBA preparation services
•Logistics services and shipment tracking
Fexbuy leverages its extensive logistics experience in automotive, industrial, and consumer electronics to provide safe and compliant global transport services of DDR batteries.
FAQs
Q1. What does Lithium Battery MSDS Shipping mean?
This refers to the shipping of lithium batteries that is accompanied by a compliant MSDS document.
Q2. Are MSDS documents required for transporting lithium batteries?
MSDS documents are required for the majority of international shipments of lithium batteries.
Q3. What information is provided on an MSDS for lithium batteries?
MSDS for lithium batteries offers information for the hazards, instructions for handling and the transportation information.
Q4. Which section of the MSDS is most important for shipping purposes?
Section 14, Transport Information, is the most important section.
Q5. What do UN3480 and UN3481 represent?
UN3480 represents lithium batteries transported by themselves, and UN3481 represents lithium batteries transported with other pieces of equipment.
